Bernet Brand High Quality MSF20T Solenovid Valve For Fuel Dispenser

Product Overview

This valve is suitable for computer fuel dispensers. It has high flow rate, low flow rate, closed two position two way, controlled by a low-power dual solenoid valve coil, adopts a sealed explosion-proof type, compact structure, and small overall size.

Product Usage: Used for computer fuel dispensers to improve the accuracy of fuel delivery.

Explosion proof standard: This valve is designed, manufactured, and inspected in accordance with standards such as GB3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements" and GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Sealing Type" m ".

Explosion proof sign: Exmb II T4

Explosion proof certificate number: CNEx10.2606X CNEx10.2611X (certificate image)

technical parameter

1. Applicable media: gasoline, diesel, kerosene

2. Environmental temperature: -35 ℃~+45 ℃

3. Medium temperature: -35 ℃~+45 ℃

4. Working pressure: 0.035MPa~0.35MPa

5. Applicable voltage: 220VAC 50/60Hz; DC24V; DC12V;

6. Voltage deviation: -10%~+15%

7. Insulation strength: ≥ 20M Ω

8. Power: 2 × 7.5W (AC220V), 2 × 5.6W (DC24V), 2 × 6.7W (DC12V)

9. Flow rate: ≥ 40L/min (high flow rate); 3-5 L/min (low flow rate)

MSF20T Solenovid Valve

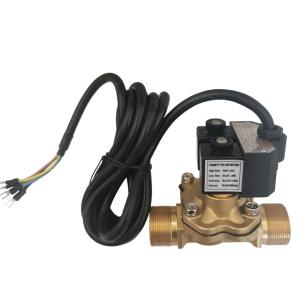

Bernet Brand High Quality MSF20T Solenovid Valve For Fuel Dispenser Images
